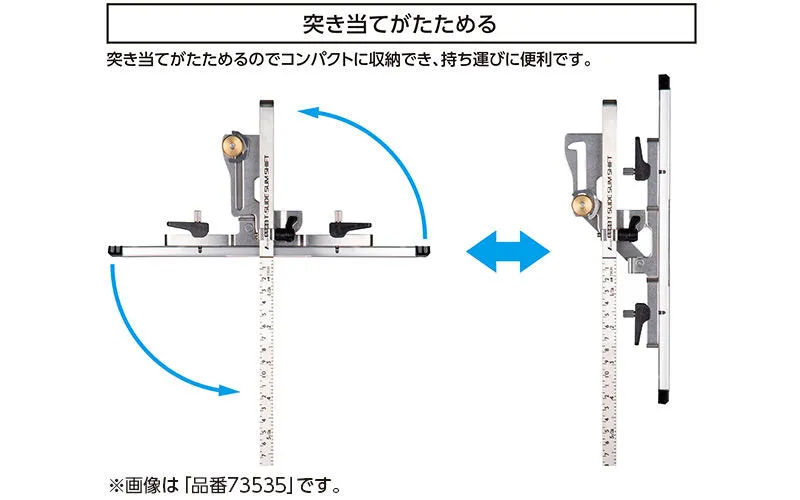

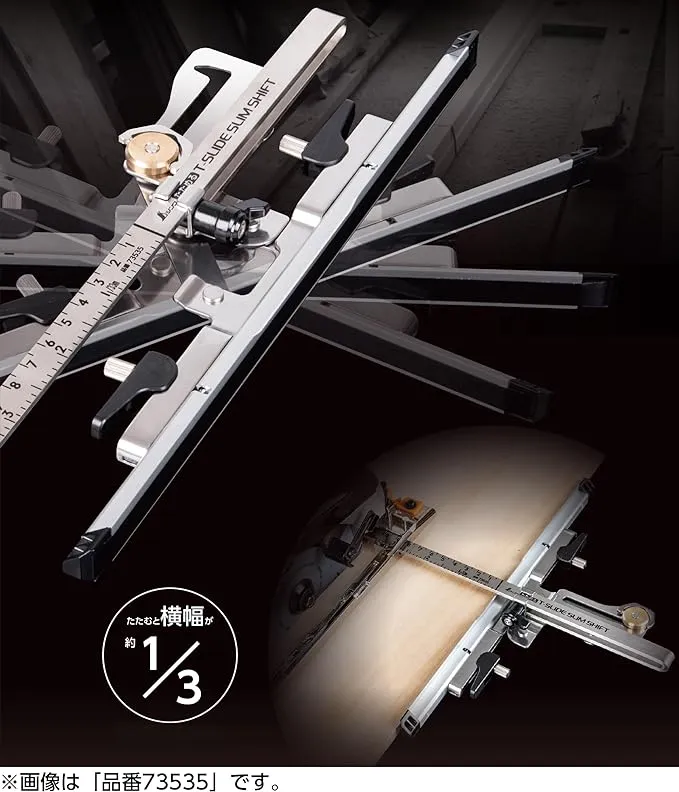

Shinwa Circular Saw Guide Ruler Foldable T-Slide Slim Shift can be conveniently stored and carried.

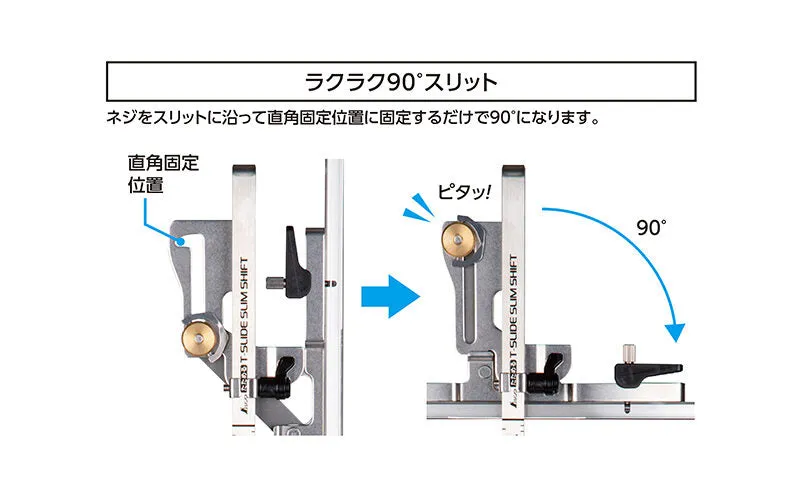

Simply fix the screw in the right angle fixed position along the slit to create a 90° angle.
You can switch between thin plate cutting and thin cutting with one touch. By raising the butt, you can cut the thin plate without it getting stuck. Also, by tilting down the abutment, you can cut into small pieces.
The height of the abutment is suitable for cutting stacked 9mm boards, so it will not interfere with the second material.
The rod is made of stainless steel (SUS304) that is hard to rust and hard to bend. You can adjust the abutment position according to your work.
Specifications:
Abutting height Thin plate mode: 15mm Thin cutting mode: 9mm
Materials:
- Rod connecting part: Stainless steel
- Abutment: Aluminum,
- UHPE tape Stopper screw: Stainless steel, brass
- Protective cap: Polycarbonate resin
- One-touch lever, set screw (shake prevention metal part): Polyacetal resin
Body size 610 x 275 x 20mm (width 89mm when folded)
