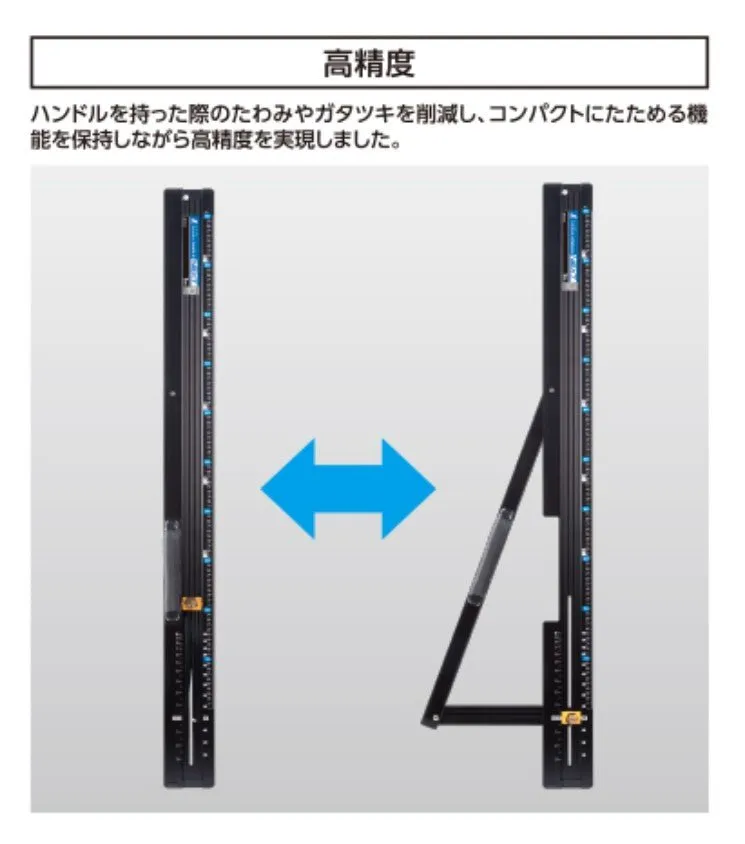

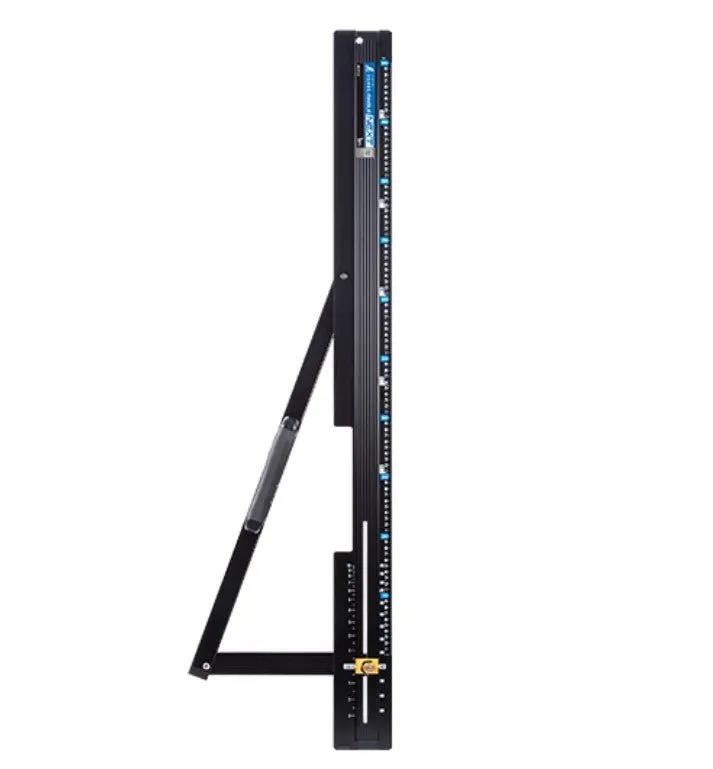

This Shinwa Foldable Circular Saw Guide can be stored compactly as the butt can be folded. While it can be fixed at 90° using the screw along the slit, it is adjustable to any angle by changing it angle of the butt. The guide has a angle scale and dimension scale (reverse slope), and is lightweight, easy to handle and convenient to carry. The guide surface has a thin stainless steel plate with a protective cap to protect the material.
- 0.1mm or less per squareness of 100mm (90° only)
- Scale: 1m
- Pole size: 1217x100x7mm
- Angle adjustment range 75 to 135°
- Hitting height: 15mm
- Materials Body: Aluminium Guide Surface: Stainless Protective Cap, Angle Indicator Plate: ABS Resin, Knob Screw: Stainless Steel, Brass Handle: ABS Resin, Elastomer Resin
- Body size: 1217×345×73 mm (width 100 mm when folded)
- Product mass: 1280g
Made in Japan
