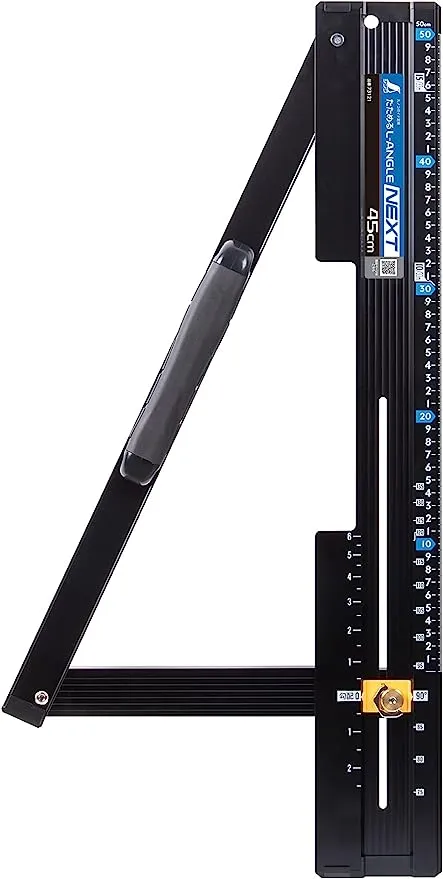

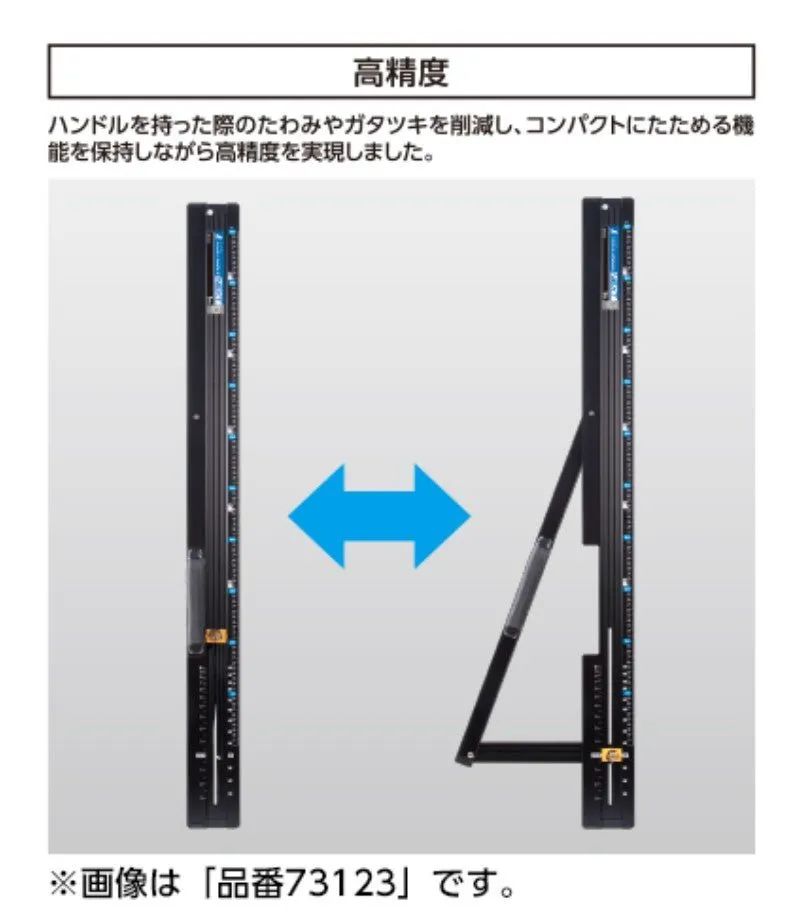

This Shinwa Circular Saw Guide L-Angle can be stored compactly as the butt can be folded. While it can be fixed at 90° using the screw along the slit, it is adjustable to any angle by changing it angle of the butt.
The guide has an angle scale and dimension scale (reverse slope), and is lightweight, easy to handle and convenient to carry. The guide surface has a thin stainless steel plate with a protective cap to protect the material.
Specifications:
- 0.1mm or less per squareness of 100mm (90° only)
- Scale 50cm
- Pole size 687 x 100 x 7 mm
- Angle adjustment range 75 to 135°
- Hitting height 15mm
Body Materials:
Aluminium Guide Surface: Stainless Protective Cap, Angle Indicator Plate: ABS Resin, Knob Screw: Stainless Steel, Brass Handle: ABS Resin, Elastomer Resin
Body size: 687 × 346 × 73 mm (width 100 mm when folded)
Made in Japan
